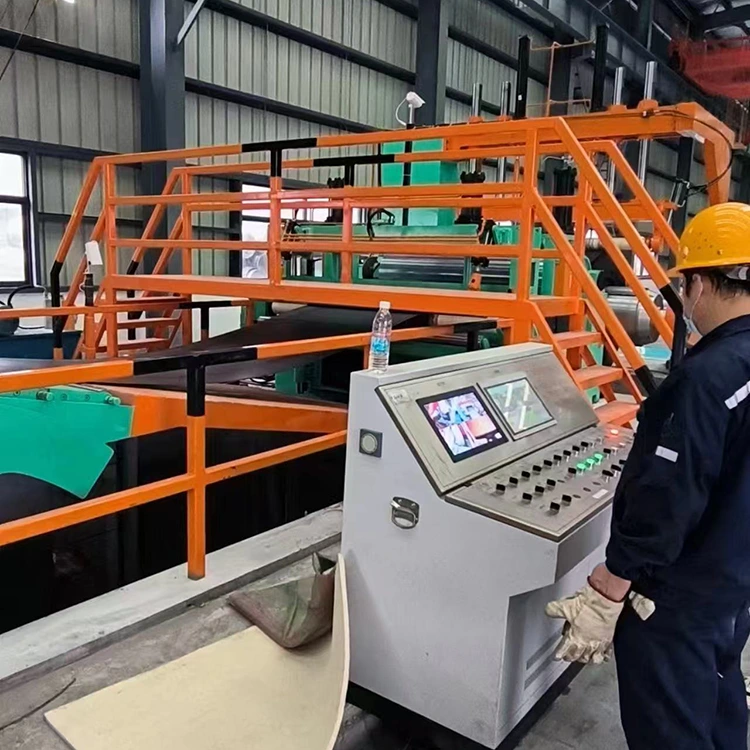

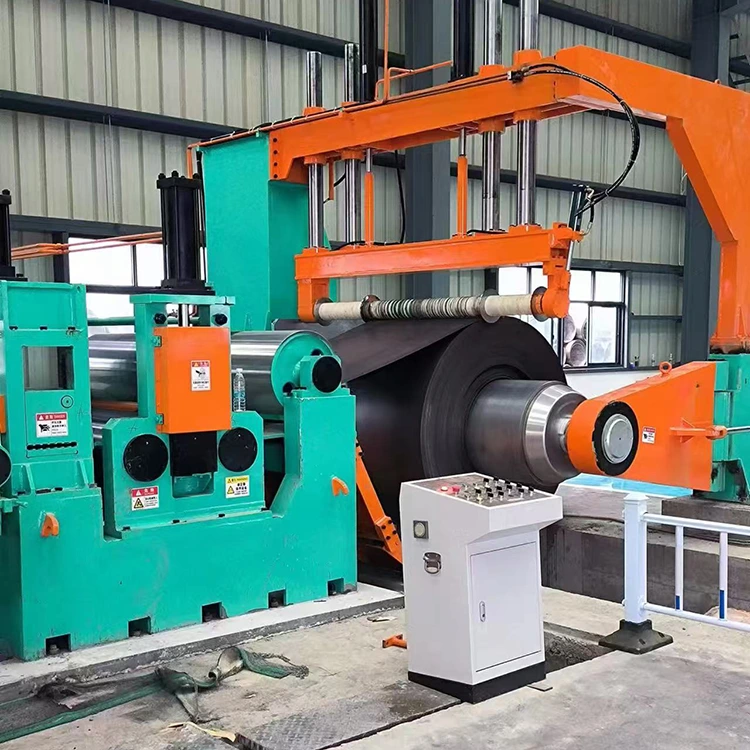

Fully Automatic Precision Longitudinal Slitting Production Line

Raw material parameters

1.1

Meterial type

Stainless steel、zinc、carbon steel、aluminium、cold rolled and hot rolled sheet

1.2

Material thickness

mm

0.3mm～3.0mm

1.3

Material width

mm

300mm～1650mm

1.4

Material inner DIA.

mm

Φ460mm～Φ520mm,with rubber sleeveΦ610mm（Hydraulic uncoiler）

1.5

Material outer DIA.

mm

Φ1800mm

1.6

Material weight

T

25 tons

Fished material parameters

2.1

Thickness range

mm

0.3mm～3.0mm

2.2

Width range

mm

300mm～1650mm

2.3

Width tolerance

mm

2.4

Inner DIA.range

mm

Φ480mm～Φ508mm（Hydraulic seamless winding machine）

2.5

Outer DIA.

mm

Φ1800mm

2.6

Number of cutting strips

条

2.7

Coil weight

T

20 Tons

2.8

Width of waste edge

mm

Machine parameters

3.1

Longitudinal shear speed

m/min

0～200m/min

3.2

Threading speed

m/min

0～15m/min

3.3

Face runout

mm

After the debugging,it reaches ±0.005mm

3.4

Radial runout

mm

±0.01mm

3.5

Power

380V/50Hz/3Ph

3.6

Aggregate capacity

KW

The exact value is subject to the final design
