Button Die Casting Machine&Moulds
  • Button Die Casting Machine&MouldsButton Die Casting Machine&Moulds
  • Button Die Casting Machine&MouldsButton Die Casting Machine&Moulds
  • Button Die Casting Machine&MouldsButton Die Casting Machine&Moulds
  • Button Die Casting Machine&MouldsButton Die Casting Machine&Moulds

Button Die Casting Machine&Moulds

Zhejiang Ruihexuan Import and Export Co., Ltd. is a large-scale Button Die Casting Machine&Moulds manufacturer and supplier in China. We have been specialized in clothing accessories and related machinery and equipment for many years. Our products have a good price advantage and cover most of the Southeast Asian markets. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

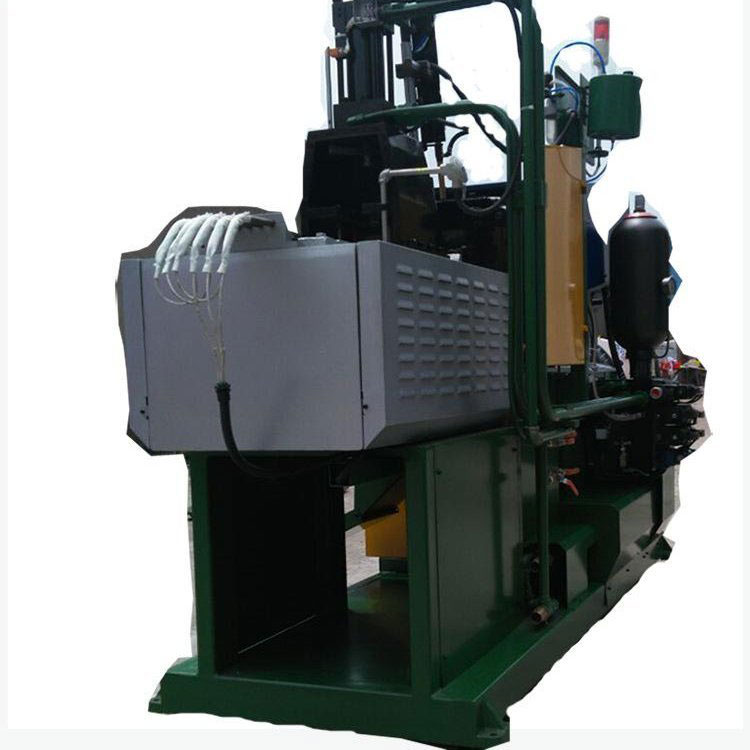

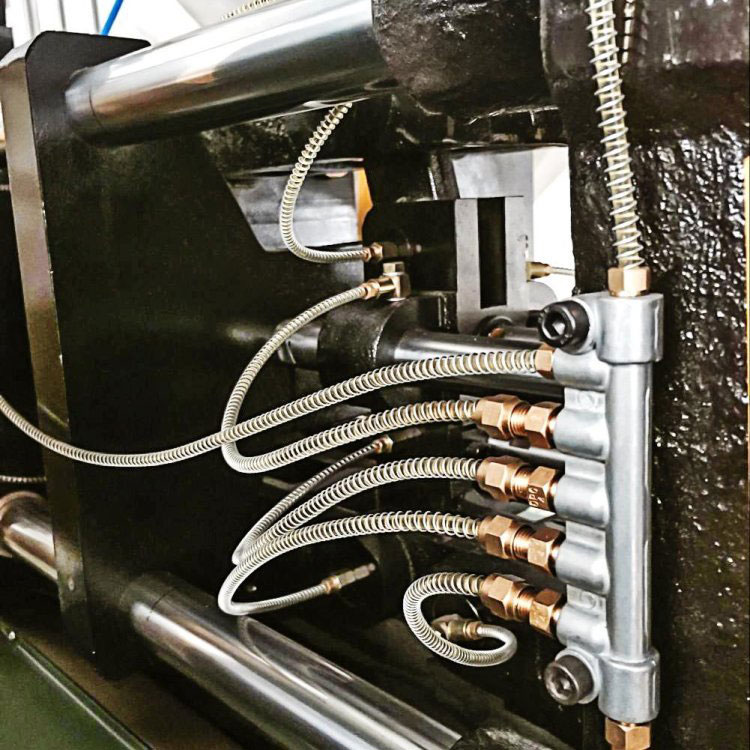

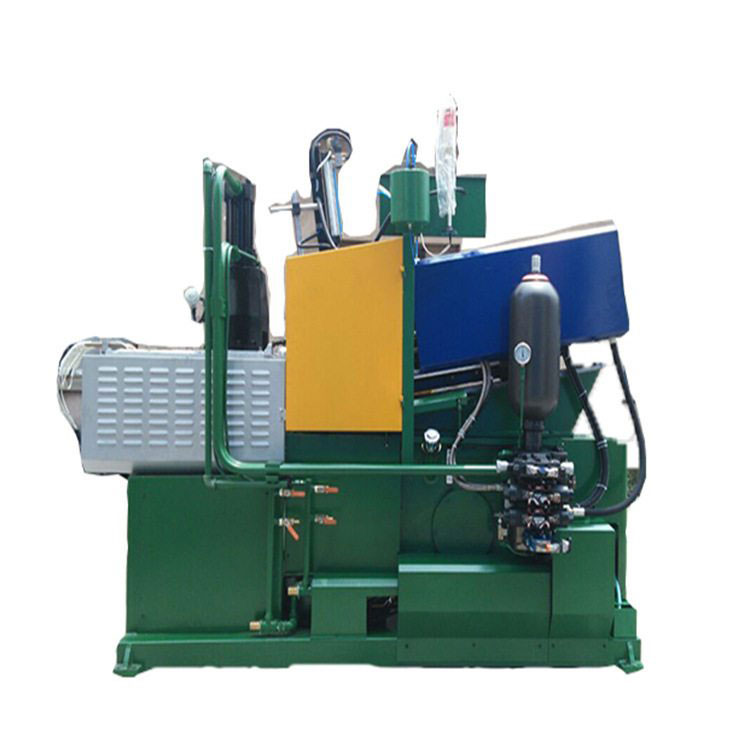

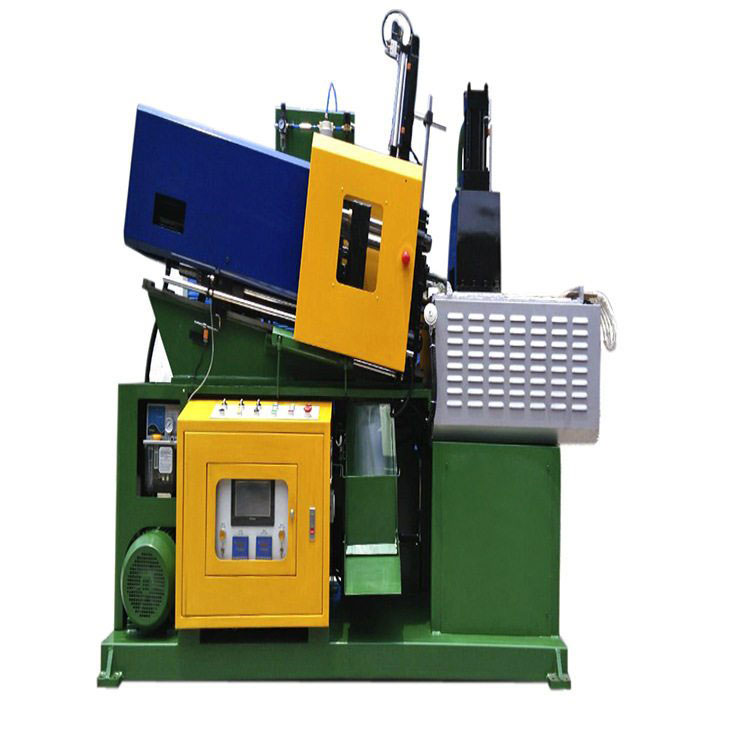

Button Die Casting Machine Introduction


1.FX-PLC control system automatically controls the linkage and safety locking of each action;

2. Control components and solenoid valves are supplied with 24V DC by switching power supply, safe and reliable;

3. Center adjusting die thickness device, easy to adjust die;

4. The template, elbow and other important parts are processed and manufactured by precision machining center;

5. Micro switch, oil seal are imported products, the performance is more guaranteed;

6. Crucible made of high temperature steel, durable




Product Parameters



Button Die Casting Machine&Moulds



ITEM

UNIT

J213A

Locking force

kN

300

Tie-bar diameter

mm

45

Die stroke

mm

160

Distance between tie-bar

mm

300X250

Die height (min. "max.)

mm

130-270

Injection force (max.)

KN

35

Plunger stroke

mm

120

Plunger diameter

mm

42

Injection pressure

MPa

24

Maximum molding area

kW/P

120

(Zn) Effective shot weight

kg

0.7

Shotting position

L

center

Traverse stroke

L

152

Pneumatic knock-off stroke

kg/h

250

Ejection force

kw

20

Ejection stroke

kW

50

Dry cycle time

mm

4.5

Flow rate of pump

sec

31

Working oil-pressure

L/min

8

Output of pump motor

MPa

7.5/4

Melting pot capacity (Zn)

kW/P

160

Accumulator capacity

kg

10

Oil tank capacity

L

200

Furnace fuel consumption

L

2

Input of furnace heating

kg/h

12

Input of nozzle heating

kw

2

Machine dimension

kW

2550X1200X1800

Machine weight

mm

2.3



t

mmt



More buttons available:

We have more buttons, such as Jeans Button, Snap Button, Prong Snap buttons,Buckles,Trousers Hook , Rivets for Clothes, Eyelets, Sewing Button ,Underwear accessories ,Garment Accessories ,Handbags Accessories ,etc.

Good quality finished. No rust and fade.



FAQ:

Q1: Can I ask for some of your Button Die Casting Machine&Moulds sample?

A: All sample is available.



Q2: Can I custom our logo on products?

A: Yes, sure.?We can customize the size, color, pattern, logo, etc.



Q3: How many days need for production?

A: Sample lead time: 7-15days, Bulk lead time: 12-15days



Q4: Are you a factory or trading company?

A: We are a factory, sales office located in Taizhou and Shanghai, factory located in Guangdong.



Q5: What is your main products?

A:

1. Raw material supply of various buttons;

2. Parts of various buttons;

3. Various types of button production equipment;

4. All kinds of clothing accessories, such as zippers, hooks, etc.
